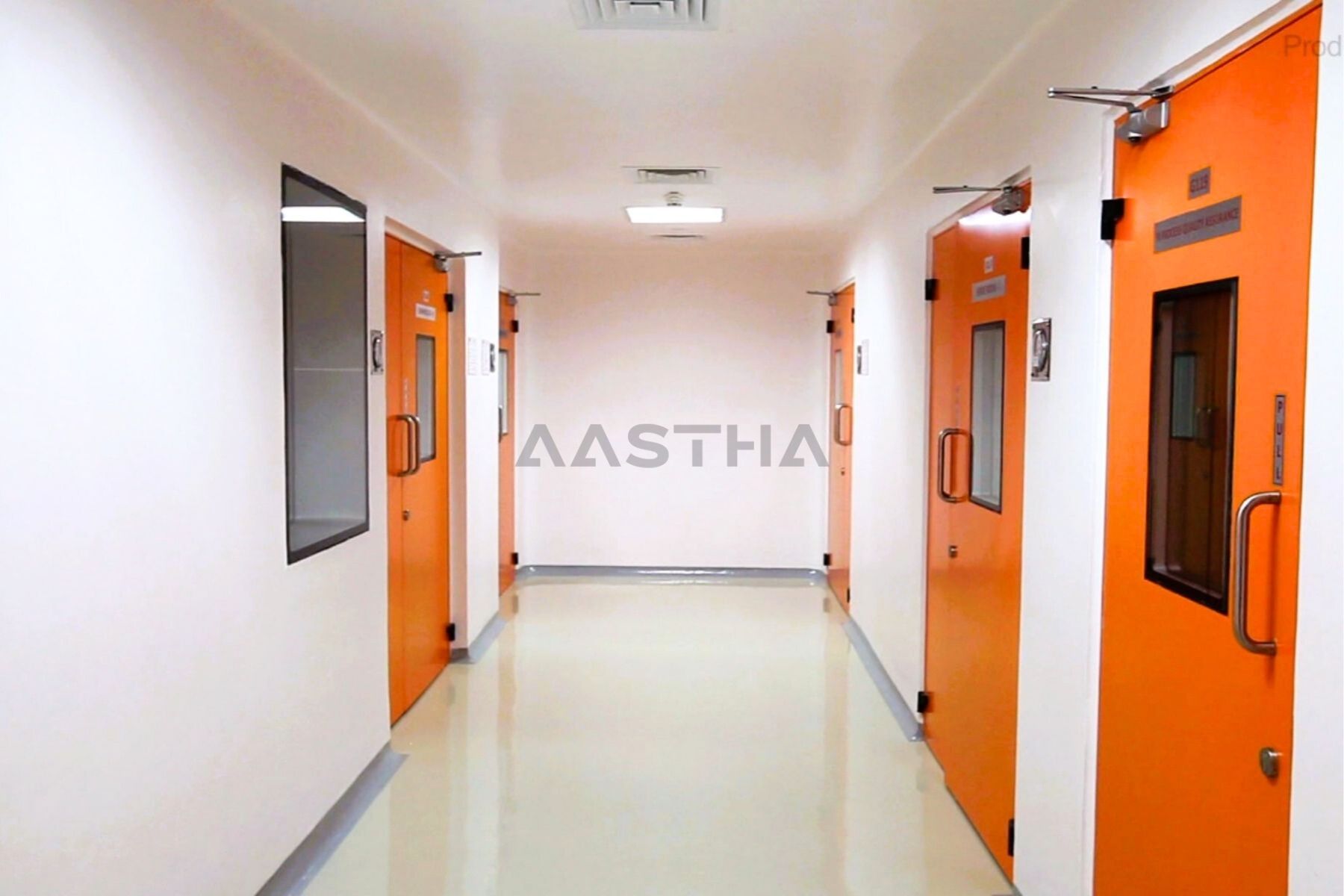

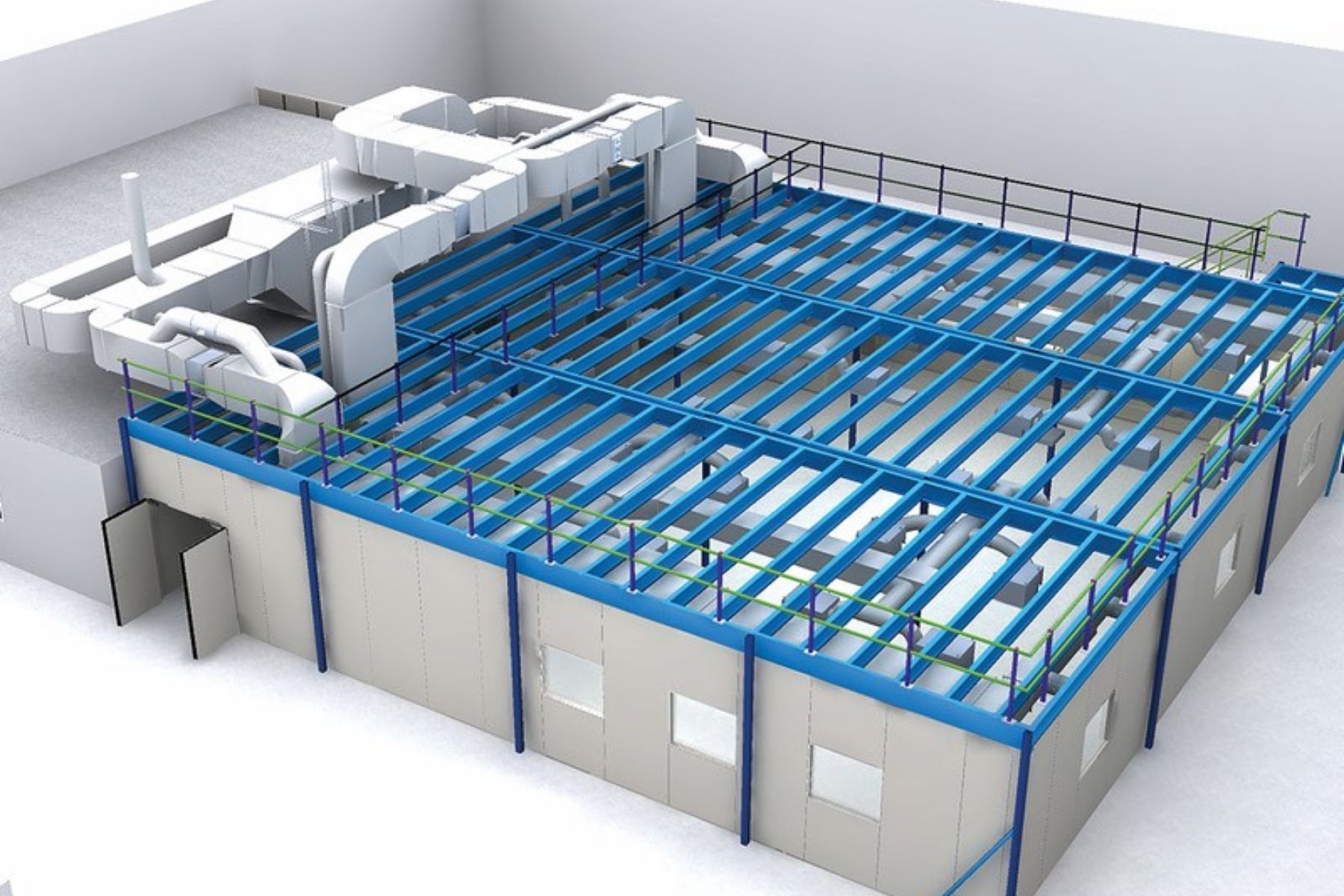

CLEANROOM PANELS INTERNAL BRICK WORK THICKNESS : 50MM LARGER ROOM SPACE FASTER INSTALLATION NO PAINTING REQUIRED MAINTENANCE FREE INSULATION & ACOUSTIC DUST FREE ATMOSPHERE PROJECT COMPLETION IS FASTER 15%-20% LOWER PLINT AREA OF BUILDING THICKNESS : 300MM SMALLER ROOM SPACE LONGER ERECTION TIME PAINTING REQUIRED MAINTENANCE IS REQUIRED NO INSULATION & ACOUSTIC DUSTY ATMOSPHERE LONGER PROJECT LEAD TIME HIGHER PLINT AREA OF BUILDING

Advantage:

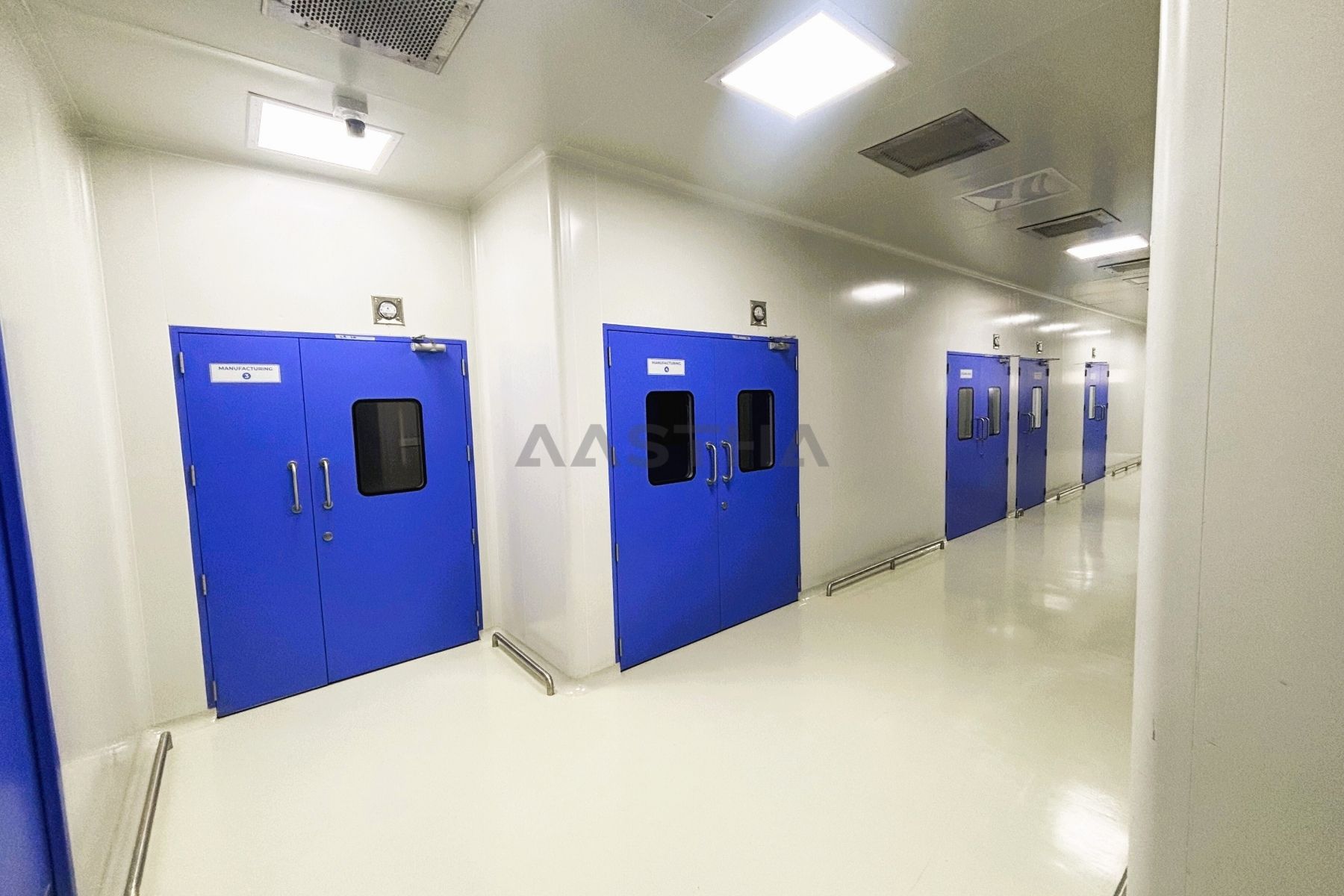

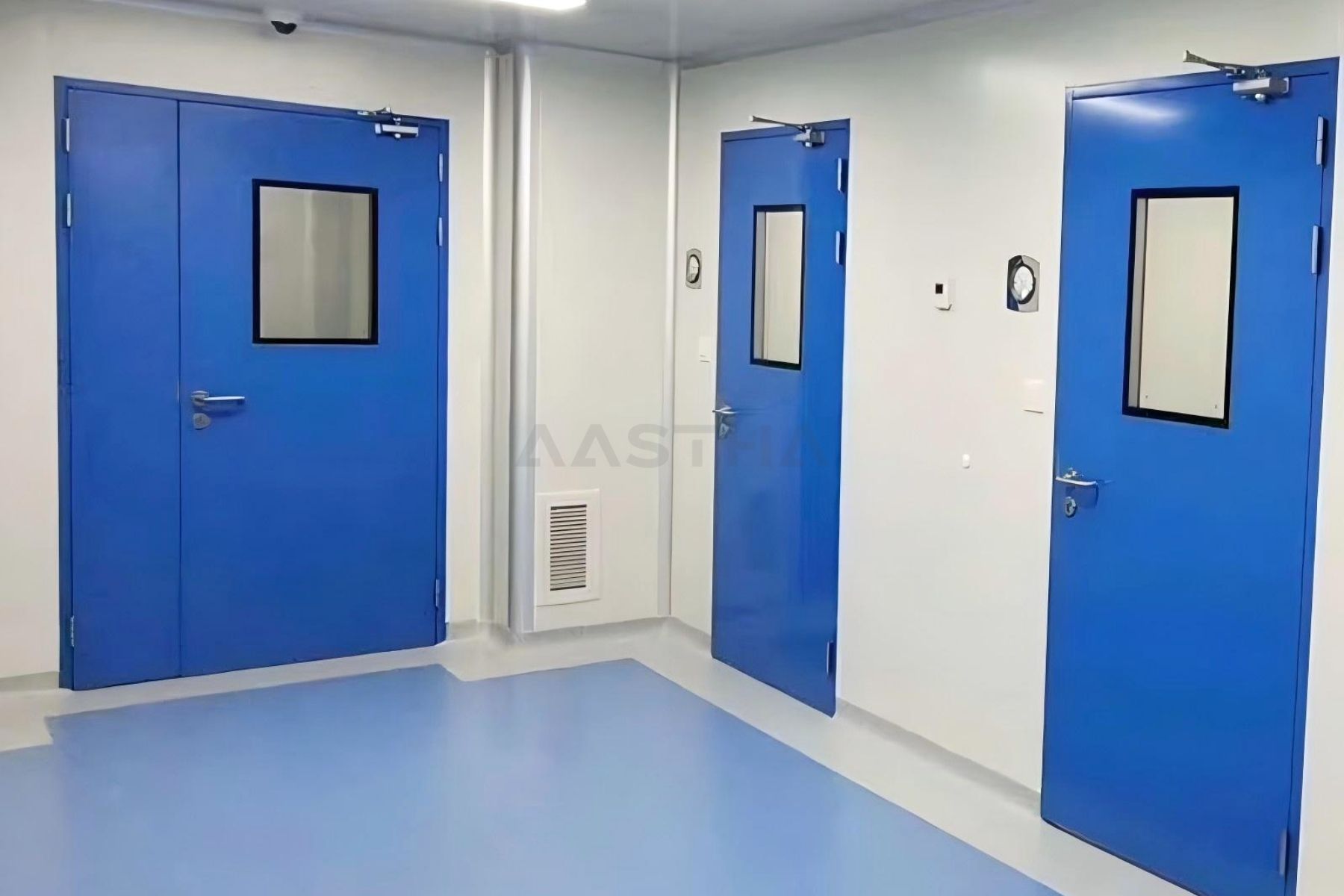

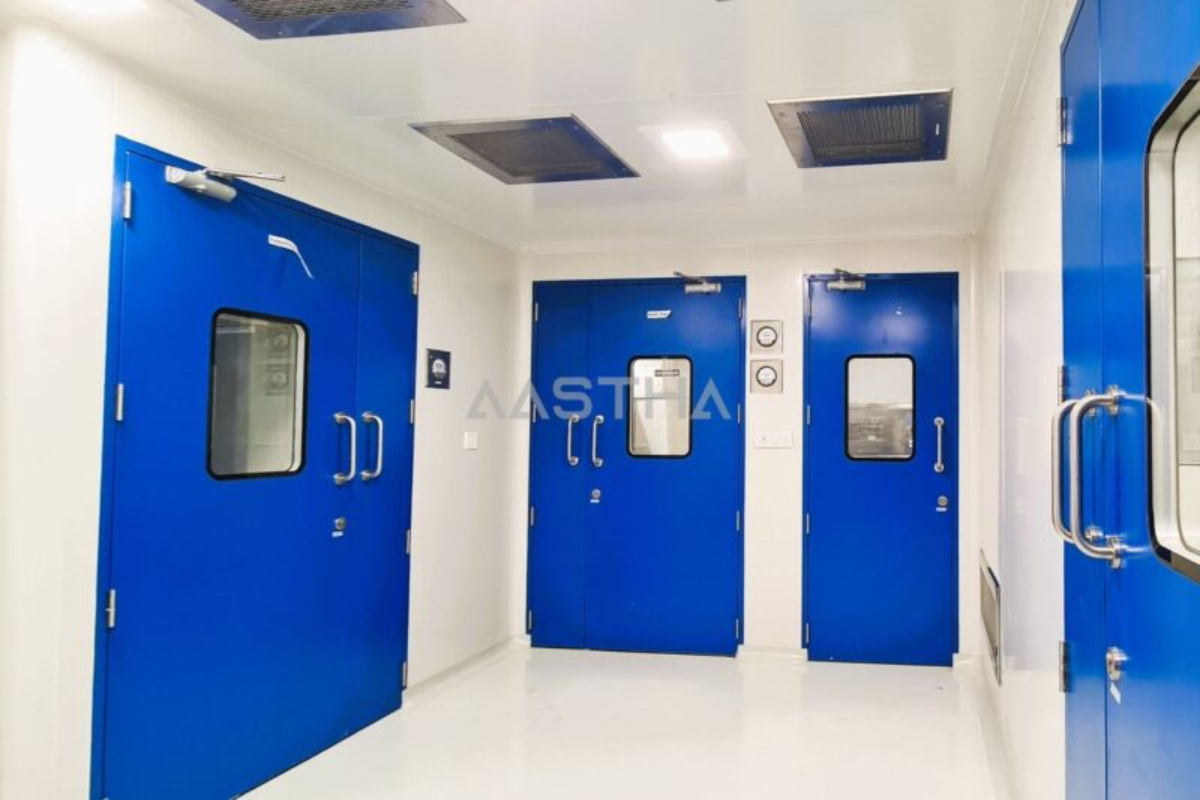

Thin & light weight construction. Wide variety of filler PUF EPS FOAM ROCK WOOL PAPER HONEYCOMB ALUMINIUM HONEYCOMB Wide variety of Surface material PCGI, PPGI, AL, S.S., Laminates. Available in 45mm, 50mm, 75mm, 100mm, 150mm thickness. Progressive and Non-Progressive. Versatile use of various materials as per process requirements. Doors compatible with panel materials. Excellent insulating property. Class 1000 & better (ISO 6 & better) can be easily achieved which may not be possible in structural type of Cleanroom without false ceiling. The simplest panel design in the world hence near zero-dependency on suppliers for AASTHA in the near future, if panels are to be relocated or dismantled. Density 45 Kg/m3 polyurethane (PUR) insulation and non CFC, hence, environment - friendly. Density 96 Kg/m3 Rock wool (RW). Less joints as compared to any other system of panel design. Design engineering and installation support from AASTHA. AASTHA systems are perfectly airtight, hence no problem in pressure balancing & cross contamination. All validation documents are provided as per NEBB guidelines / standards. AASTHA modular panels can be individually ‘DOP' smoke tested for panel integrity / leakages. Rock wool, Honeycomb Design Available.
